Interpreting artificial intelligence models: a systematic review on the application of LIME and SHAP in Alzheimer’s disease detection


Explainable artificial intelligence (XAI) has gained much interest in recent years for its ability to explain the complex decision-making process of machine learning (ML) and deep learning (DL) models. The Local Interpretable Model-agnostic Explanations (LIME) and Shaply Additive exPlanation (SHAP) frameworks have grown as popular interpretive tools for ML and DL models. This article provides a systematic review of the application of LIME and SHAP in interpreting the detection of Alzheimer’s disease (AD). Adhering to PRISMA and Kitchenham’s guidelines, we identified 23 relevant articles and investigated these frameworks’ prospective capabilities, benefits, and challenges in depth. The results emphasise XAI’s crucial role in strengthening the trustworthiness of AI-based AD predictions. This review aims to provide fundamental capabilities of LIME and SHAP XAI frameworks in enhancing fidelity within clinical decision support systems for AD prognosis.

1 Introduction

Alzheimer’s Disease (AD) is a neurodegenerative disorder characterised by the progressive deterioration of brain cells’ protein components resulting in the deposition of plaques and tangles [1]. The presence of these anomalous proteins impairs the communication between these components, resulting in a significant decline in cognitive function. Mild Cognitive Impairment (MCI) is a transitional stage from Cognitively Normal (CN) to dementia, with a 10% chance of progressing to AD [2, 3]. According to the most recent World Alzheimer’s Report, 55 million people worldwide suffer from AD, making it the seventh leading cause of death [4].

Fig. 1
figure 1

Stages of Dementia: 1–2 corresponds to early mild cognitive impairment or EMCI, 3–4 represents late mild cognitive impairment or LMCI and 5–6 depicts the AD phenomenon

Figure 1 shows different stages of dementia, which often fall into three major categories: (i) Early Mild Cognitive Impairment (EMCI), (ii) Late Mild Cognitive Impairment (LMCI), and (iii) Severe stage of cognitive impairment, which is when the patient is diagnosed to suffer from AD [4]. There are no apparent disease symptoms during the EMCI stage (frames 1 and 2), but a perceptible memory decline is observed [5]. The LMCI stage (frames 3 and 4) is marked by below-average memory and moderate dementia that has minimal effect on daily activities [6]. In this stage, the diseased cannot manage their daily affairs (such as coping with their profession) [5]. AD’s terminal stage (frames 5 and 6) is characterised by severe functional impairment that interferes with essential daily activities and necessitates frequent assistance [4, 7]. At this phase, the AD patient relies entirely on their caregiver, which causes significant physical and mental strain on the patient and their caretaking family members. MCI is a transitional stage from CN to dementia, with a 10% chance of progressing to AD. Hence, early prediction of the MCI can provide an opportunity for early intervention to prevent or delay the onset of AD.

The AD diagnosis typically takes a considerable amount of time. However, diagnostic technologies such as magnetic resonance imaging (MRI), computed tomography (CT), and positron emission tomography (PET) scans have emerged as efficient methods for collecting AD biomarkers [7]. When these biomarker data are used in conjunction with artificial intelligence (AI), it can aid in early disease prediction. In recent years AI, in particular machine learning (ML) and deep learning (DL), have attracted many researchers to contribute in diverse fields and challenging research assignments such as: anomaly detection [8,9,10], signal analysis [11,12,13,14,15,16,17,18,19,20,21,22,23], neurodevelopmental disorder assessment and classification focusing on autism [24,25,26,27,28,29,30,31,32], neurological disorder detection and management [33,34,35,36,37,38,39], supporting the detection and management of the COVID-19 pandemic [40,41,42,43,44,45,46,47], elderly monitoring and care [48], cyber security and trust management [49,50,51,52,53,54], ultrasound image [55], various disease detection and management [56,57,58,59,60,61,62,63], smart healthcare service delivery [64,65,66], text and social media mining [67,68,69], understanding student engagement [70, 71], etc. ML and DL models have also been used extensively in AD prediction due to their ability to analyse large amounts of data and identify patterns that may not be immediately apparent to human experts [7, 37, 72,73,74,75,76,77]. ML and DL models can identify patterns and signals that may indicate the early stages of a disease, allowing for early detection and treatment. DL models are even more popular, and the results obtained for AD prediction by DL models are unparalleled to this date [6, 78,79,80].

While ML and DL models have shown great promise in AD prediction, their black-box nature remains a significant hurdle to their adoption in real-world scenarios [81]. The lack of interpretability and transparency can lead to reluctance by medical professionals to use these models in real-world scenarios [82]. For instance, if a model predicts that a patient is at high risk for AD, the physician needs to know the reasons behind the prediction to make informed decisions about treatment and care.

Hence, Explainable Artificial Intelligence (XAI) is gaining importance in recent years which refers to techniques and methods used to make AI models more transparent and interpretable [30, 81, 81, 83]. Some examples of XAI techniques include saliency maps and feature importance analysis. Of many different XAI techniques, LIME and SHAP remain popular for explaining ML and DL models in AD prediction [83]. Based on the data presented in Fig. 2, it can be inferred that LIME and SHAP tools have been the most popular XAI frameworks for AD prediction and interpretation, with nearly 70% of the studies utilising them [79]. Hence, a comprehensive review article covering the broad scope of these techniques is imperative.

Fig. 2
figure 2

Sanky Diagram of various XAI frameworks used in AD prediction since 2018–2023 September. Reproduced with permission from [83]

This review article covers various aspects, such as the theoretical foundations and implementation of these techniques, their applications in AD classification, and potential benefits associated with their use. Furthermore, the review article also explores these techniques’ limitations and discusses possible future research directions.

Table 1 Comparing LIME and SHAP frameworks

This resource would be an excellent reference point for researchers and professionals who seek to examine deeper into the XAI frameworks and develop accurate and interpretable models for AD diagnosis and classification.

This study makes three notable contributions:

  1. 1.

    Methodological Excellence: The research employs a systematic review methodology aligned with the guidelines proposed by Kitchenham [84] and PRISMA [85], ensuring a rigorous and comprehensive analysis.

  2. 2.

    In-Depth Exploration: The formulation of research questions (RQ) addresses the holistic landscape of LIME and SHAP XAI frameworks for AD classification. The study conducts a thorough survey of these methods over the last decade, critically analysing their findings, results, capabilities, and limitations.

  3. 3.

    Practical Guidance: The study goes beyond theoretical analysis by providing Python-based code walkthroughs for implementing LIME and SHAP frameworks. This practical guidance is especially beneficial for newcomers entering the field, enhancing accessibility and application of the presented frameworks.

The rest of the paper is structured as follows: Sect. 2 provides a brief overview of LIME and SHAP XAI frameworks. The search strategy is explained in Sect. 3. Section 4 presents the findings of this systematic review and Sect. 5 draws the concluding remarks.

2 Overview of SHAP and LIME

The predictions of machine learning algorithms, particularly for medical diagnosis, can be disastrous if acted upon with blind faith. The models are evaluated based on accuracy metrics. Besides using accuracy metrics, inspecting each prediction and interpreting significant instances that lead to the decision is necessary [83]. Such explanations for instances of individual predictions can lead to trusting the prediction [83]. Multiple such predictions and explanations can help trust the model. LIME and SHAP are popular model interpretability frameworks featuring various approaches. While LIME focuses on local interpretability, SHAP offers global and local insights with dual interpretability.

Table 1 provides key distinctions between the LIME and SHAP XAI frameworks. For an in-depth understanding of XAI-specific terminologies, readers should refer to recent review articles on XAI [81, 83]. This section furnishes a brief overview of these frameworks.

Fig. 3
figure 3

A model predicting a patient with AD and LIME highlights the symptoms that led to the prediction

2.1 Local interpretable model-agnostic explanations (LIME)

LIME is an algorithm that, by locally approximating any classifier or regressor with an interpretable model, can accurately explain the predictions of any classifier or regressor [86]. Interpretable representation and local fidelity are two essential characteristics of LIME. Interpretability provides a qualitative understanding between the input variables and the responses. At the same time, local fidelity corresponds to the trustworthiness or faithfulness of the model’s performance within the vicinity of the predicted instance. The term model-agnostic implies that the explainer algorithm can explain any model by treating the original model as a black box model [83]. LIME can interpret image classifications, explain text-based models, and provide explanations for tabular datasets. These explanations can be presented in different forms, including textual (see Fig. 9), numeric, or visual formats. As shown in Fig. 3, an interpretable model is easily understood by humans irrespective of the model’s basic feature set. For instance, in image classification for AD, the classifier may represent the image as a tensor with three colour channels per pixel. Then, an interpretable representation can be a binary vector indicating the presence or absence of a contiguous patch of pixels that can explain the prediction.

Algorithm 1
figure a

Explanations using LIME

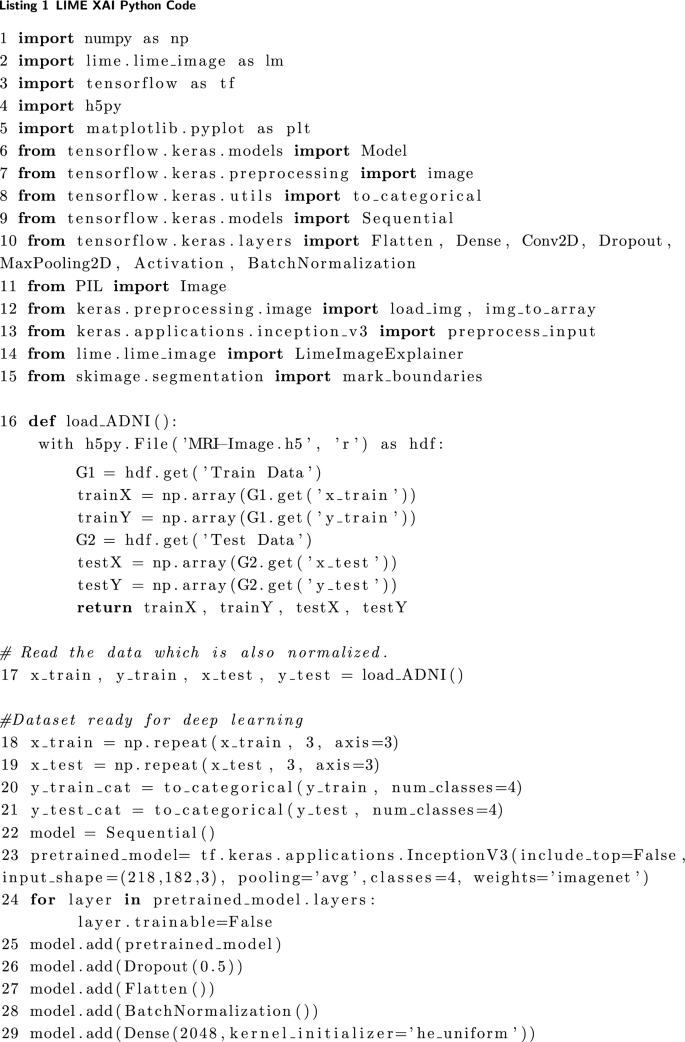

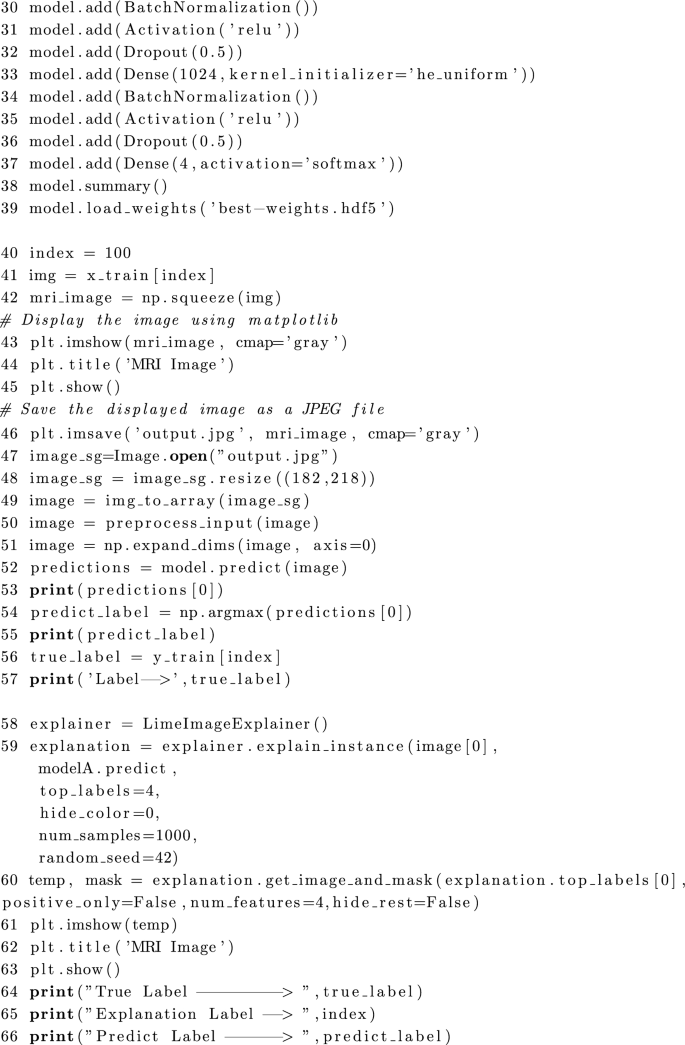

The listing in Algorithm 1 presents the step-by-step approach to realising LIME explanations. Suppose G is a class of interpretable models and \(g\in G\) is a model that can be readily presented with visual or textual artefacts. In that case, the domain of g is \(\{0, 1\}^d\), indicating the presence or absence of interpretable components. However, not every \(g\in G\) may be interpretable, so let \(\Omega (g)\) be a measure of complexity. For a model \(f: {\mathbb {R}}^d \rightarrow {\mathbb {R}}\) that needs interpretability, f(x) denotes the probability of x belonging to a specific class. To define the locality around x, let \(\pi _x(z)\) be a measure of the distance between an instance z and x. Finally, let \({\mathcal {L}}(f, g, \pi _x)\) denote a measure of the unfaithfulness of g in getting an explanation for f within the locality defined by \(\pi _x\). These parameters are used as input as shown in Algorithm 1 to obtain an explanation for LIME represented by Eq. 1:

$$\begin{aligned} \epsilon (x) = {\text {argmin}}_{g \in G} {\mathcal {L}}(f, g, \pi _x)+\Omega (g) \end{aligned}$$

where \({\mathcal {L}}(f, g, \pi _x)\) and \(\Omega (g)\) must be minimised to ensure interpretability and local fidelity.

Fig. 4
figure 4

a Binary classification task from two features. b Randomly perturbed data sample. c Perturbed samples labelled using a black box model. d LIME weights samples based on proximity. e LIME learns linear model (best when visualised in color)

An empty set Z is initialised (step 8) to store the non-zero instances chosen from a linear model, for example, drawn by minimising Delta \({\mathcal {L}}(f, g, \pi _x)\) weighted by \(\pi _x\) around \(x'\) (see Fig. 4a). From steps 10–14, it is seen that the N data samples around \(x'\) are randomly perturbed. The perturbed samples can be represented as \(z'\in \{0, 1\}\) d’ and contain some non-zero elements of \(x'\). The original representation of the sample can be reformulated as \(z \in {\mathbb {R}}^d\). In classification, f(z) is the probability or binary indicator that z belongs to a particular class. These perturbed samples are append to the set Z and again fed to the black box model, and f(z) is used to obtain the classification labels (see Fig. 4b, c).

The next step is to fix weights to the chosen samples (Refer Algorithm 1 step 16). The primary intuition behind LIME is building a good local approximation using \(\pi _x\) where samples with higher weight lie near \(x'\) and others (with lower weight) far from \(x'\). Therefore, to learn the interpretable model, LIME again fixes weights to the perturbed samples according to their proximity to \(x'\). Samples close to \(x'\) are given a more significant weight, and samples far from \(x'\) are given low weights (see Fig. 4d). The model with perturbed data samples Z s used to construct a learning model by adding weights \(g(z') = wg \times z'\) and the new function of unfaithfulness \({\mathcal {L}}\) found as in Eq. 2:

$$\begin{aligned} {\mathcal {L}}(f, g, \pi _x) = \sum _{z, z' \in Z} \pi _x(z) (f(z) - g(z'))^2 \end{aligned}$$

where the weight \(\pi _x (z) = e^{\frac{-D(x,z)^2}{\sigma ^2}}\) defined on some distance function D based on the type of resultant artefacts (textual or visual) with width \(\sigma\).

Given this dataset Z of perturbed and weighted samples with associated labels, Eq. 1 is further optimised to get an explanation \(\epsilon (x)\) (see Algorithm 1 step 21). Considering a default linear model for LIME with sparse features, learning from the weighted samples provides adequate explanations for the prediction that \(x'\) is intrinsically interpretable. The model’s linear weights can be seen as feature scores indicating its importance in prediction (see Fig. 4e).

2.2 SHapley additive explanations (SHAP)

SHAP is an XAI technique based on a mathematical method that assigns a weight called the Shapley value, to each feature of a trained model [87]. The weight assigned to each feature measures its contribution to the prediction and is based on game theory concepts. SHAP is a model-agnostic explainer that is an interpretable model by itself. It can predict the original black box model for a specific data instance by determining the essential features and their influence on the model prediction.

Algorithm 2
figure b

Explanation using SHapley values (\(\phi\))

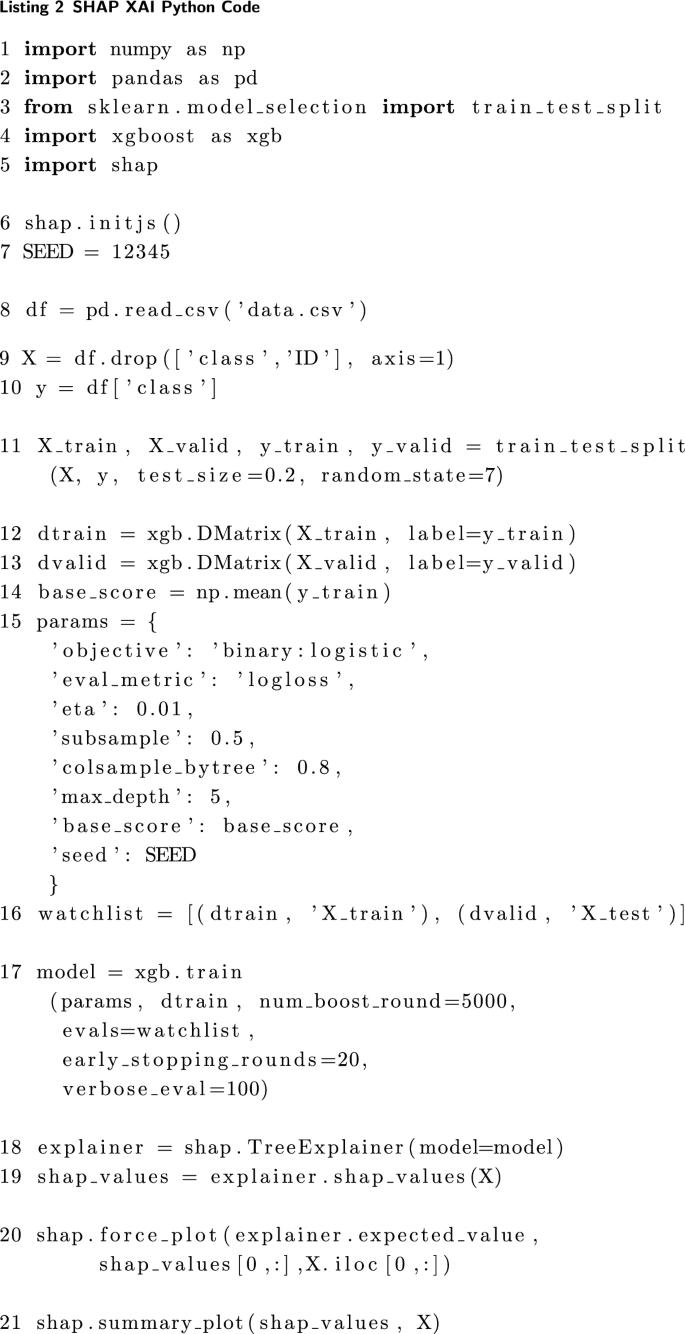

In this section, we explain SHAP as a simple linear regression machine learning model that predicts the absence or presence of a disease. We assume F as a set of M features \(\{1, 2, 3,\cdots ,M\}\), a coalition or combination of possible features, S as a subset of F \((S\subseteq F)\), and \(\phi\) as an empty set (coalition with no features). Then based on cardinality \(2^M\) is the possible number of coalitions. We also assume a function v that maps each coalition to a real number called the marginal contribution of the coalition (see Algorithm 2). Then, the marginal contribution is v(S) for each coalition S, and for an empty coalition, it is given by Eq. 3:

$$\begin{aligned} v(\phi ) = 0 \end{aligned}$$

For each permutation P, the first step is to calculate the marginal contribution of the coalition of features S, which were added before a feature \(\{i\}\) (Refer steps 11–16 from Algorithm 2). Subsequently, the coalition’s contribution formed by adding the feature \(\{i\}\) to S, which is the coalition \(S \cup \{i\}\), is found. In Eq. 4, the contribution of the feature \(\{i\}\) is represented as \(\phi (i)\):

$$\begin{aligned} \phi (i) = \frac{1}{|F|!} \sum _{P} (v(S\cup \{i\}) - v(S)) \end{aligned}$$

where |F| is the number of features of set F, |F|! is the total number of permutations of the coalition set F (consisting of all features) and \(v(S\cup \{i\})--v(S)\) is the contribution of the feature \(\{i\}\) to the total contribution of each permutation. In Eq. 4, the sum of the contributions is divided by |F|! to find the average contribution for the feature \(\{i\}\). Therefore, the total contribution of the feature \(\{i\}\) to the total contribution of all permutations for one possible coalition S in F is given by Eq. 5:

$$\begin{aligned} |S|! \cdot (|F| - |S| - 1)! \cdot (v(S\cup \{i\})-v(S)) \end{aligned}$$

The process can be repeated for other coalitions of \(F-\{i\}\) to obtain the sum of the contributions of the feature \(\{i\}\) in all the permutations of F as in Eq. 6 (see steps 11 to 16 from Algorithm 2):

$$\begin{aligned} \sum _{S \subseteq F-\{i\}} |S|! \cdot (|F| - |S| - 1)! \cdot (v(S\cup \{i\})-v(S)) \end{aligned}$$

Finally, considering the |F|! permutations for F, the average contribution of the feature \(\{i\}\) to the total contribution of all the permutations of F is given by Eq. 7:

$$\begin{aligned} \phi (i) = \sum _{S \subseteq F-\{i\}} \frac{|S|! \cdot (|F| - |S| - 1)!}{|F|!} (v(S\cup \{i\})-v(S)) \end{aligned}$$

where \(\phi (i)\) is the Shapley value for one feature \(\{i\}\) and is the mathematically computed marginal contribution of the feature \(\{i\}\) to the total contributions of all the features in F. The process can be repeated to compute the Shapley values for every other feature \(\{i\}\) and represent that feature’s contribution to the model output for a specific prediction (see steps 17 and 18 from Algorithm 2).

For example, considering input features for AD, like age, gender, education level, cognitive test scores, and brain image data and aggregating the SHAP values for the entire dataset, we may find that the cognitive test scores have the highest negative SHAP value, indicating that they are strongly associated with a lower probability of AD. On the other hand, the age, education level, and brain imaging data can have positive SHAP values, indicating that they are associated with a higher probability of AD. Further, the SHAP values can be visualised using various plots, such as a summary plot (see Fig. 10) that shows the global importance of each feature or a force plot (see Fig. 11) that shows the contribution of each feature to a model prediction.

3 Research questions and search strategy

We followed PRISMA [85] and Kitchenham [84] guidelines to identify relevant papers for this review. The overall process is shown in Fig. 5.

Fig. 5
figure 5

Process of relevant article identification

The first process is framing clear and well-defined Research Questions (RQ). This ensures that the review is focused, helps to guide the search for relevant studies, and aids in data extraction and synthesis. The RQs used in this study are shown in Table 2. Next, appropriate search strings are finalised by developing a list of relevant keywords and synonyms. The search strings shown in Table 3 are finalised after several permutation combinations of identified keywords. The search for relevant articles was carried out on five databases.

Table 2 Research Questions
Table 3 Inclusion–exclusion criteria, search strings, and scientific repositories used in data synthesis

Initial search until September 2023 in these databases yielded 1567 research articles (208 from ACM, 150 from IEEE, 159 from Springer, 789 from PubMed, 261 from ScienceDirect). These records were screened for duplicates, which resulted in 941 unique records. Next, the identified articles are screened using titles and abstract of publication with the help of inclusion–exclusion criteria as shown in Table 3. This effectively reduced the number of relevant articles to 50 records that exclusively dealt with XAI-based AD classification. However, this included research articles dealing with other XAI frameworks such as Gradient Class Activation Mapping (GradCAM), Layerwise Relevance Propagation (LRP), Salience Map, etc. So, a final screening included only studies using LIME and SHAP frameworks in the model interpretability, which effectively had 23 research articles. Figure 6 shows a proper understanding of the steps taken in the process.

Fig. 6
figure 6

Filtering of Alzheimer’s Disease Studies with LIME and SHAP: The PRISMA Approach

4 Data synthesis

In this section, we present our findings by extensively reviewing the 23 articles through the RQs shown in Table 2.

4.1 LIME and SHAP XAI frameworks for AD detection

This subsection addresses the RQ1: What AI systems are available for AD research that incorporate LIME and SHAP?

Fig. 7
figure 7

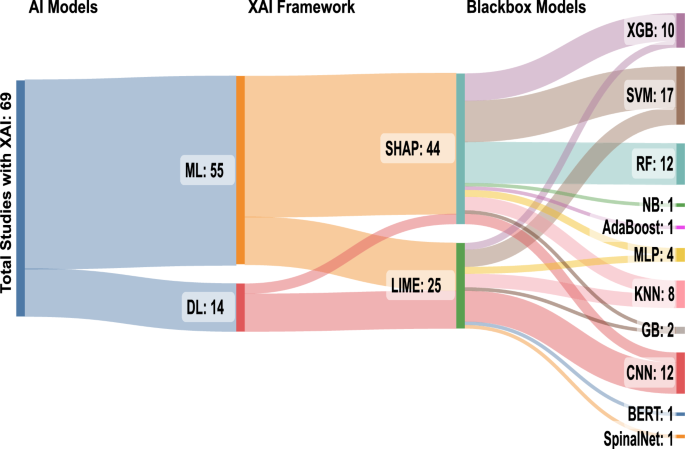

Sanky diagram of LIME and SHAP frameworks used in this review

Since 1970 there has been immense attention on AI in disease diagnosis and treatment [88] and has achieved important progress in research over the years. The concept of eXplainable AI (XAI) has recently been introduced into AI-based AD prediction which is a suite of machine learning techniques that produce models due to a growing demand for transparency and explainability in healthcare and medical practice. The XAI techniques make it possible for people to comprehend, believe in, and control the newest generations of AI models. Among the emerging techniques, two frameworks have been widely recognised as state-of-the-art in XAI and those are: the LIME framework introduced by Rebeiro et al. [86] and the SHAP values introduced by Lundberg et al. [87]. Several studies for AI-based AD detections incorporating LIME and SHAP have been identified (see Tables 4, 5 and 6, and the mapping on Fig. 7). Some of the research articles have utilised datasets that include ADNI, OASIS, and Kaggle for training AI-based AD detection models. The following subsections focus on the strengths and applications of LIME and SHAP individually. Subsequent subsection, analyses papers that integrate both techniques, exploring the combined insights they provide for enhanced interpretability in machine learning models.

Fig. 8
figure 8

LIME Explanation (modified from [89])

Table 4 Studies incorporating LIME framework for explaining model predictions

4.1.1 Studies based on LIME

This section focuses on review articles using LIME, known for its model-agnostic local interpretability, and generates explanations around instances using perturbation (see Table 4). Hamza et al. [90] experimented with neural network models for early AD detection by employing classification approaches utilising a hybrid dataset from Kaggle and OASIS. In this study, the LIME explainer is used to explore the exact region for which a specific classification occurs. The predicted result is perturbed to create featured data. A local linear model is obtained that includes partial value moderation. LIME now interprets the probable outcome of the newly generated data by assigning weights in the model to justify the prediction of AD patients whether it is in the early stage or later. Kamal et al. [89] have used images and gene expression to classify AD and also explained the results in a trustworthy way. In this study, LIME interprets how genes were predicted and which genes are particularly responsible for an AD patient. The genes identified for AD are ranked based on probability values and are separated into AD and non-AD classifications. Figure 8 shows an illustration of the LIME explanation from this study. Another article by Loukas et al. [92] has used speech recordings and associated transcripts from the ADReSS Challenge dataset to detect AD. In this article, LIME was employed to explain the BERT model that shed light on the differences in language between AD and non-AD patients. Maria et al. [91] propose a novel approach for classifying Electroencephalogram (EEG) signals to provide early AD diagnosis. The XAI method used in the study provides quantitative features that help arrive at the prediction using EEG recordings obtained from individuals with probable AD, MCI, and HC. Duamwan et al. [93] in their study discuss contemporary techniques like neural networks that often operate as black boxes, emphasising the importance of understanding the rationale behind predictions, particularly in the medical domain. This study uses a CNN-based computer vision method to find AD using the ADNI MRI dataset. It was able to classify unseen MRI scans with 94.96% accuracy. The LIME algorithm is used to make things easier to understand by giving visual proof and automatically showing parts of images that help make predictions through a segmentation algorithm. The primary objective of the study is to use LIME in this context to furnish medical professionals with specific, easily comprehensible information, facilitating efficient, consistent, and convenient diagnoses.

Table 5 Studies incorporating SHAP framework for explaining model predictions

4.1.2 Studies based on SHAP

In this review, it was found that SHAP is another XAI framework that is being used frequently rooted in cooperative game theory, offering a unified measure of feature importance (see Table 5). Shaker et al. [94] have developed and utilised a multi-layered multi-model system for an accurate and explainable AD diagnosis. The authors have used SHAP in each layer of the Random Forest (RF) architecture for a local and global explanation and provide a complementary justification by using several other explainers that include decision trees and fuzzy rule-based systems. Bloch et al. [95] state that the diverse causes of AD can lead to inconsistencies in disease patterns, protocols used for acquiring scans, and preprocessing errors of MRI scans resulting in improper ML classification. This study investigates whether selecting the most informative participants from the ADNI and Australian Imaging Biomarker and Lifestyle (AIBL) cohorts can enhance ML classification using an automatic and fair data valuation method based on XAI techniques. Angela et al. [96] present a robust framework for classification between CN, Mild Cognitive Impairment (MCI), and AD and interpret the predictions with XAI methods. The article shows how SHAP values can accurately characterise its effect on a patient’s cognitive status. Monica et al. [97] compare the performances of the best three models from ‘The Alzheimer’s disease prediction of Longitudinal evolution’ (TADPOLE) challenge concerning prediction and interpretability within a common XAI framework. SHAP values explain the decision made by the RF classifier for each sample with a vector showing feature importance for each subject at a specific visit. Based on interpretable machine learning, Lai et al. [98] investigate the endoplasmic reticulum (ER) stress-related gene function in AD patients and identify six feature-rich genes (RNF5, UBA C2, DNAJC10, RNF103, DDX3X, and NGLY1) that enable accurate prediction of AD progression. This article uses SHAP along with white-box models that include decision trees and Naive Bayes (NB) for a local and global interpretation of each feature within the ML models. The study by Bogdanovic et al. [99] used XGBoost and RF for a four-way classification of disease from HC, early MCI, late MCI and AD. The explainer SHAP is used here for a local and global interpretation of the model. Chun et al. [100] try to improve the predictive power of progression from amnestic MCI to AD using an interpretable ML algorithm. This study uses several classifiers including logistic regression (LR), RF, Support Vector Machine (SVM) and XGBoost to compare the predictions. The SHAP values are expressed as summary and dependence plots for a local interpretation of individual patients and also behave as model-agnostic for a global interpretation.

Xiaoqing et al. [101] propose a reliable multi-class classification model supported by XAI methods to explain the predictions accurately. The study uses Random Seeds and Nested cross-validation SVM Synthetic Minority over Sampling (SVM-SMOTE) and RF as classifiers for a multi-way prediction. In this study, SHAP values are used for both local and global interpretation. SHAP is used by Ahmed et al. [102] and Louise et al. [103] to determine the order of informative predictors in test data. ML models and their relationships were also visualised and analysed using SHAP summary plots. SHAP force plots examined the individual forecasts of chosen individuals, and the summary plots of those models primarily displayed biologically conceivable outcomes. Sameul et al. [104], used RF and XGBoost algorithms in classifying between CN and AD. The study developed an ensemble-based ML model to predict AD and explained the prediction in local and global contexts. The study also includes feature importance analysis and ranked the dominant features influential in AD. Hammond et al. [105] use the SHAP framework to identify the biomarker that is most influential in AD detection predicted by the RF classifier. The research article tries to classify subjects into different categories like CN, MCI, or AD by using SHAP values to rank the features in each layer of RF to obtain a local interpretation. The study also aggregates the rightly ranked layers of RF and compares again for a global interpretation. In the study by Yilmaz et al. [106] authors address the designing of an explainable diagnostic machine learning model for predicting AD severity levels. Utilising two open-source MRI datasets, a Convolutional Neural Network (CNN) was developed and evaluated, achieving an impressive accuracy rate of 99.9%. This outperformance underscores the potential of deep learning in meeting diagnostic standards. To enhance transparency, the SHAP framework was employed, revealing that the model’s predictions align with well-known pathological indicators of AD, thereby providing interpretability and reinforcing its diagnostic validity. A multimodal deep-learning framework, combining a 3DCNN with a bidirectional recurrent neural network (BRNN) is introduced by Rahim et al. [107]. The 3D CNN captures intra-slice features from MRI volumes, while the BRNN identifies inter-sequence patterns indicative of AD, utilising longitudinal data over a 6-month span. The study explores the impact of fusing MRI with cross-sectional biomarkers like demographic and cognitive scores. The authors used SHAP to enhance interpretability for domain experts. Results demonstrate the framework’s robustness, achieving 96% accuracy, 99% precision, 92% recall, and a 96% AUC. The fusion of MRI with demographic features enhances stability, and the explainability module provides valuable insights, accurately identifying brain regions relevant to AD diagnoses.

Fuliang et al. [108] address the class imbalance in their study, in the context of Alzheimer’s disease diagnosis, during the transition from normal cognition to mild cognitive impairment using a machine learning approach. They have used the framework, extreme gradient boosting-Shapley additive explanations (XGBoost-SHAP), that aims to handle the imbalance among different AD progression statuses and achieve multiclassification of NC, MCI, and AD. In the study clinical, neuropsychological, and neuroimaging-derived biomarker patient data collected from ADNI database is employed for feature extraction embedded into the XGBoost algorithm. To enhance interpretability, the SHAP method is coupled with XGBoost, providing insights into the impacts of model predictions. The framework achieves high sensitivity, specificity, accuracy, and area under the receiver operating characteristic curve (AUC) on all datasets. Additionally, the study provides valuable insights for clinical decision-making based on SHAP values.

Table 6 Studies incorporating LIME and SHAP framework for explaining model predictions

4.1.3 Studies based on LIME and SHAP

In this section we review articles that integrate both the techniques LIME and SHAP, uncovering insights for enhanced interpretability in machine learning models (See Table 6). Loveleen et al. [109] discuss AD prediction using tree-based models. The study employed machine learning algorithms like LR, SVM, KNN, Multilayer Perceptron, and decision trees to classify patients into demented and non-demented groups. The authors introduced an explanation-driven Human–Computer Interaction (HCI) model, achieving high accuracy across algorithms and comparing performance with state-of-the-art deep learning models. To enhance interpretability, LIME and SHAP explanation algorithms were applied to black-box deep learning models. Rashmi et al. [110] diagnoses AD with various datasets and emphasises the importance of explainability beyond diagnosis. The study utilises MRI feature data, including generic information, cross-sectional MRI data, and longitudinal MRI data. In the study, the data processing methodology involves balancing data, transferring data using a Quantile Transformer, applying PCA dimension reduction for six features, and employing a meta machine learning model. The author uses SHAP and LIME as explainable tools to elucidate the diagnostic outcome. The research achieves outstanding results, with 97.6% accuracy, 95.8% precision, 97% recall, and an F1 Score of 96.8%, as a result of employing advanced data processing techniques.

Loveleen et al. [111] advocate that medical research should go in a new, and more revolutionary direction by combining deep learning and XAI and moving toward a human–computer interface (HCI) model. The proposed study uses SHAP, LIME, and DL algorithms to create a strong and understandable HCI model. The inclusion of DL algorithms, including LR (80.87%), SVM (85.8%), k-nearest neighbour (87.24%), multilayer perceptron (91.94%), and decision tree (100%), along with LIME and SHAP, opens new avenues for exploration in the medical sciences. These findings show that using an easy-to-use computer interface in decision-making processes makes the model more accurate at making predictions. This is very important for biomedical and clinical research.

4.2 Data modalities used in LIME and SHAP XAI frameworks

This subsection addresses the RQ2: What are the different input modalities used by LIME and SHAP for AD detection?

The popular XAI frameworks, LIME and SHAP, can be applied to a wide range of input modalities for machine learning models including numeric, categorical, image, audio and time-series data. Models that use tabular data such as medical records, financial data or customer demographics are examples of numeric data modality. Predictions in textual form like natural language text, sentiment analysis or spam detection are considered categoric in nature. The input data image constitutes medical images, facial recognition, object detection, etc. for predictions by machine learning models. LIME and SHAP also analyse audio data such as speech recognition or voice authentication and time-series data such as weather forecasting and sensor data analysis. By this RQ we categorise the reviews into subsections showing articles using image, numeric or tabular data, and categoric data modality separately along with ML techniques for prediction and subsequent AD interpretations. A few articles have used either numeric and medical images alone or along with numeric and categoric data in association with DL classifiers(see Tables 4, 5, and 6)

4.2.1 Studies that use image data for explainability

As images present unique challenges, including intricate patterns and spatial relationships, we examine in this section the essential theme of model explainability tailored to interpret complex models dealing with image data. Hamza et al. [90] collected T1 weighted MRI scans from Kaggle, aiming for a four-way classification of AD predictions. Using DL architectures like ResNet50, VGG16, and InceptionV3, they explained feature importance through LIME. The weights assigned by LIME served as explanations, justifying predictions for AD patients at various stages. Simultaneously, Duamwan et al. [93] examined the contemporary neural network techniques, emphasising the need for transparent models in medical predictions. Their study, employing a CNN-based computer vision approach on the ADNI MRI dataset, achieved a notable 94.96% accuracy in classifying MRI scans. Leveraging LIME, the research enhances interpretability by visually highlighting crucial image segments. The shared objective is to provide medical professionals with specific, easily comprehensible information, streamlining diagnoses efficiently and consistently. Yilmaz et al. [106] focus on crafting an interpretable machine-learning model to predict AD severity levels. Using two open-source MRI datasets, they developed and evaluated a Convolutional Neural Network (CNN), achieving an exceptional accuracy rate of 99.9%. This outstanding performance highlights the capability of deep learning to meet diagnostic standards. To augment transparency, the study integrates the SHAP framework, revealing that the model’s predictions align with established pathological indicators of AD. This not only enhances interpretability but also reinforces the diagnostic validity of the model.

4.2.2 Studies using numeric data for explainability

Numeric data, with its quantitative nature, plays a crucial role in decoding complex algorithms and offering valuable insights. In this section we explore studies focused on numeric data for explainability, aiming to understand how researchers harness numerical information to demystify the black box nature of machine learning models, fostering transparency and accountability in artificial intelligence.

Maria et al. [91] propose a pioneering method for early AD diagnosis by classifying Electroencephalogram (EEG) signals. The study employs an XAI method, extracting quantitative features from EEG recordings of individuals with probable AD, Mild Cognitive Impairment (MCI), and Healthy Controls (HC). Numerous studies, such as [94, 101], and [105], exclusively use datasets from the ADNI database. These studies employ numeric input data derived from diverse biological and clinical measures, including MRI volumetric readings, cognitive scores, genetic data, demographic history, and laboratory test data. Machine learning classification techniques, such as RF, SVM, LR, DT, and LGB, are utilised for classifying CN and AD. Studies in [95] and [96] compare prediction accuracy using datasets from ADNI and AIBL cohorts. These studies utilise numeric input data from biological and clinical measures to train ML models like RF and XGBoost for three-way classification (CN, MCI, and AD). The SHAP framework is consistently used for either local or global explanations of features. Similarly, [103] performs a four-way classification (HC, stable MCI, progressive MCI, and AD) using numeric input data collected from ADNI, OASIS, and AIBL cohorts. Various ML models, including XGBoost, RF, SVM, LR, and Decision tree, are employed, and SHAP is used to interpret prediction results.

Studies in [97] utilise the numeric input dataset from the TADPOLE challenge and ADNI cohorts, incorporating clinical history, cognitive and anatomical data, metabolic features, and cerebrospinal fluid biomarkers. XGBoost, RF, and SVM ML models are applied for AD classification, with SHAP providing explanations. In [98], numeric gene expression data from the Gene Expression Omnibus website is used for classifying patients between CN and AD. SHAP is employed for both local and global interpretations of predictions made by various ML classifiers. Moreover, [100] utilises clinical and neuropsychological assessments from the Samsung Medical Center, South Korea, for classifying between amnestic MCI and AD. ML models, including LR, RF, SVM, and XGBoost, are used, and SHAP is applied to explain feature importance. Fuliang et al. [108] tackle class imbalance in AD diagnosis using the XGBoost-SHAP framework. Clinical, neuropsychological, and neuroimaging-derived biomarker data from ADNI are employed for feature extraction. SHAP is coupled with XGBoost to enhance interpretability, achieving high sensitivity, specificity, accuracy, and area under the receiver operating characteristic curve (AUC) on all datasets. Rashmi et al. [110] emphasises the importance of explainability beyond diagnosis, utilising various datasets for Alzheimer’s diagnosis. The study employs MRI feature data, applies advanced data processing techniques, and uses SHAP and LIME for explanation. Additionally, Loveleen et al. [111] advocate for a revolutionary direction in medical research by combining deep learning and XAI. The study uses SHAP, LIME, and deep learning algorithms to create a Human–Computer Interface (HCI) model, achieving high accuracy in predictions.

All the referenced studies underscore the significance of numeric data in enhancing the transparency and interpretability of machine learning models, particularly in the context of AD diagnosis.

Fig. 9
figure 9

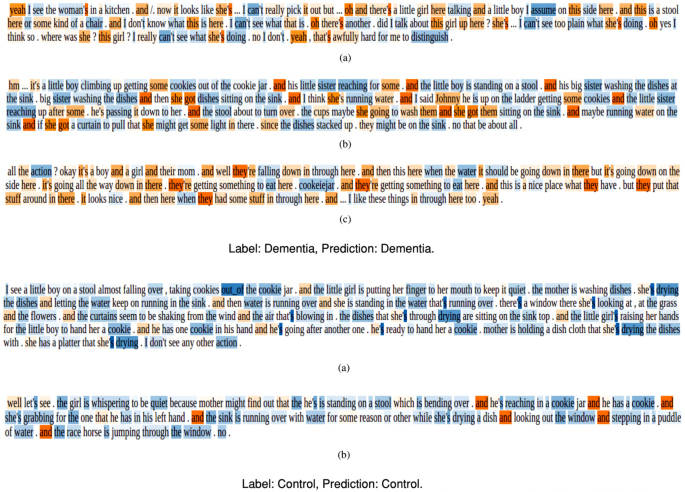

LIME Textual explanation (modified from [92])

4.2.3 Studies using categorical data

In this review, there was only one article by Loukas et al. [92] that used a distinctive approach for AD detection. The authors used speech recordings and associated transcripts from the ADReSS Challenge dataset to detect AD. Unlike studies relying on numeric data, this investigation employs categorical data models for explainability. Specifically, Loukas et al. [92] leverage the transformer-based network BERT along with transcripts to uncover language differences between AD and non-AD patients. LIME is applied to explain the BERT model, providing insights into these linguistic distinctions. The visual representation in Fig. 9 illustrates the intensity of colours for the textual form of explanation by LIME. It suggests that AD patients exhibit a higher frequency of using personal pronouns, interjections, adverbs, verbs in the past tense, and the token “and” at the beginning of utterances. This approach offers a unique perspective by utilising categorical data and linguistic patterns for AD detection, contributing to the broader landscape of explainable AI in healthcare.

4.2.4 Studies using numeric data along with categorical or image data

Studies with an intersection of numeric, categorical, or image data are paving the way for enhanced understanding and interpretability in machine learning models. In this review, we found innovative articles that explore the combination of numeric, categorical, and image data to provide significant insights and foster transparency in machine learning outcomes.

In [99], numeric and categoric datasets from the TADPOLE challenge and ADNI cohorts, encompassing diverse clinical, anatomical, metabolic, and cerebrospinal fluid biomarker information, are employed for multi-way classification in AD. Utilising XGBoost, RF, and SVM models, the study integrates the SHAP framework for both local and global interpretations of feature importance. Despite the decision tree-based nature of ML models, SHAP’s model-agnostic attributes facilitate its extension to diverse ML models. The authors discuss potential selection bias with the Data Shapley method, emphasising more specific and less generalisable models for a particular subgroup. Figure 11 illustrates force plots depicting the impact of SHAP values on feature interaction and overall predictions at the individual level. Additionally, the study underscores SHAP as supplementary knowledge for clinicians, enhancing diagnostic conclusions over time. Analysing SHAP plots, the study identifies CDRSB as the most impactful feature, while gender and APOE4 exhibit minimal influence, challenging gender predisposition notions. The study concludes that MMSE value predominantly impacts CN subjects, with age holding the most influence on late MCI class, rendering gender insignificant. In another study, Ahmed et al. [102] utilise SHAP to ascertain the sequence of informative predictors in test data. ML models, such as DT, Light Gradient Boosting (LGB), Logistic Regression (LR), RF, and SVM, are examined using SHAP summary plots. The studies focus on CN and AD classification, employing numeric input data from biological and categoric measures obtained from the ADNI database. In the study, SHAP is applied for both local and global interpretations of feature importance. Various ML models are also explored for a 4-way classification, leveraging SHAP to establish rankings. The study further quantifies associated predictors using a proxy PCA, contributing to stable rankings.

A few studies have employed numeric and image data for AD classification and explaining thereafter. Kamal et al. [89] employed both DL and ML classifiers in a comprehensive four-way classification of AD predictions. DL classifiers, specifically SpinalNet and CNN, utilised MRI scans from Kaggle and OASIS-3, while ML classifiers, including SVM, KNN, and XGBoost, leveraged gene microarray data from the NCBI database. By combining MRI and gene expression data, the authors created a multimodal diagnostic model for AD. LIME was integrated to provide interpretability, explaining the role of genes and ranking them based on probability values in AD prediction. In a similar study, Rahim et al. [107] introduced a multimodal deep-learning framework, combining a 3D CNN with a bidirectional recurrent neural network (BRNN). This framework captured intra-slice features from MRI volumes and identified inter-sequence patterns indicative of AD, utilising longitudinal data over a 6-month span. The study explored the fusion of MRI with cross-sectional biomarkers such as demographic and cognitive scores. SHAP was employed to enhance interpretability for domain experts. Results demonstrated the framework’s robustness, achieving 96% accuracy, 99% precision, 92% recall, and a 96% AUC. The fusion of MRI with demographic features enhanced stability, and the explainability module provided valuable insights by accurately identifying brain regions relevant to AD diagnoses.

In summary, studies combining numeric, categorical, and image data for AD classification utilise diverse machine learning models. XAI methods like SHAP and LIME enhance interpretability, shedding light on influential features. This holistic approach, integrating different modalities, aims to create comprehensive and transparent AD diagnostic models, ultimately advancing our understanding of the disease and aiding clinical decision-making.

4.3 Benefits of LIME and SHAP in AD detection

This subsection addresses the RQ3: What are the benefits of using LIME/SHAP for AD detection and in general healthcare?

Several benefits have been reported by studies in this review that use the concept of LIME and SHAP explainers in AI-based AD detection. A majority of the studies discuss the importance of adding trustworthiness in AI predictions, particularly in the medical industry. We discuss the benefits in terms of various output forms of explanations such as numeric, textual, visual and rule-based forms. There are no studies that have produced Rule-based explanations in this review. Therefore in this section, we discuss the benefits in terms of the Numeric, Textual, and Visual forms of explanations.

Kamal et al. [89] have found that LIME was useful in discovering critical genes responsible for AD. Also, the XAI method was useful in identifying the major sets of genes and their role in favouring the progress of AD disease. The authors found that the genes OR8B8 and ATP6V1G1 are found to be highly significant for AD and HTR1F and OR6B2 for non-AD patients. Hamza et al. [90] and Sidulova et al. [91] use LIME to visualise the more red areas of the brain that were identified as representative features for AD diagnosis. The colourful areas signify regions that instigate the image classification models to make the prediction. The author also finds LIME to be beneficial to comprehend low-level data. Loukas et al. [92] use the transformer-based network - BERT along with transcripts to produce differences in language between AD and non-AD patients. Figure 9 depicts the intensity of colours for the textual form of explanation by LIME, suggesting that AD patients tend to use personal pronouns, interjections, adverbs, and verbs in the past tense and the token “and” at the beginning of utterances in a high frequency.

The RF classifier is found to be used in several research along with the SHAP explainer supporting the predictions with visual explanations such as violin, force, and summary plots [94, 96, 105]. The authors in [94] claim high-performance measures for the tradeoff between accuracy and interpretability. Several credible and trustworthy visual justifications support the results.

Fig. 10
figure 10

SHAP Summary Plot explanation (modified from [94])

Figure 10 shows the summary plot for the second layer for the pMCI and sMCI classes respectively. The study in [96] gives the absolute value of each SHAP score that expresses how much each feature contributes to the final prediction. The authors also show how SHAP has achieved in explaining the internals of the RF classifier trained on cognitive and clinical information. The explanations provide a possible link between diagnosis and patterns of feature relevancy. In another study [105], the authors illustrate models with high-performance measures as the models work by merging many decision trees to obtain a final global forecast. The authors replicated the analysis using SHAP and obtained a consistent feature ranking analysis. The study employed AD biomarkers that are powerful enough to predict CN, late MCI and AD and also ranked the biomarkers in order of their feature importance. The study also shows that the Amyloid beta (A), tau (T), and neurogenerative biomarkers (N) have different importance in predicting clinical dementia. The study proves the high importance of the biomarkers (A) and (T) in predicting early cognitive impairment and the glucose uptake in predicting later cognitive impairment. The authors also demonstrate a framework integrating A/T/N biomarkers using RF to classify dementia and rank biomarker features.

The ML models XGBoost and RF are used in [95, 99, 104] for AD classification and interpreting with SHAP. Although the ML models used in the study are decision tree-based, the SHAP model-agnostic interpreter simplified its possibility of extending the application to other ML models. The authors discuss the increased possibility of a selection bias using the Data Shapley method, leading to more specific and less generalised models and reducing the problem to a specific subgroup. Fig. 11 shows force plots with the effect of SHAP values on the interaction of features and the overall prediction at the individual level. In a different study [99], the authors demonstrate the use of SHAP as additional knowledge for clinicians and other related experts when concluding the diagnosis for a particular patient. The study claims worthy benefits regarding the model’s exactness and validity for the time difference. The study establishes, by analyzing the SHAP plot, that CDRSB leads by far the most in the impact of the model’s output. The gender and APOE4 have very low feature importance values, indicating the least influence on the prediction outcome. The authors establish that there is no gender predisposition for obtaining AD. From this outcome, it can be confirmed that the APOE gene does not act as a decisive factor in a diagnosis. The authors conclude in the study that the MMSE value impacts most on the CN subjects, and the subject’s age has the most influence on the late MCI class, leaving the gender feature insignificant.

Fig. 11
figure 11

SHAP Force Plot explanation (modified from [104])

The study by Monica et al. [97] and Min et al. [100] use the ML models LR, SVM, and RF to compare prediction performances between CN and AD. In [97], the author shows how to quantify the contribution of each feature to achieve the best accuracy and also identify features with significant importance that resulted in the prediction. The authors justified the best ML method that uses information coherent with clinical knowledge using SHAP violin plots. Fig. 12 shows the SHAP values computed from the RF classifier as described by the authors in [97]. The study [100] using LR, SVM, and RF proves noteworthy in demonstrating that the interpretable machine learning (IML) algorithm can estimate the individual risk of conversion to dementia in each MCI patient. Another major finding of the authors was that the IML, consisting of ICE and SHAP, allowed for the interpretation of variables that acted as important factors in the conversion to dementia in each patient. Altogether, both the findings in the study suggest that an algorithm using the IML technique enabled the authors to individually predict the conversion of patients with amnestic MCI to dementia.

Fig. 12
figure 12

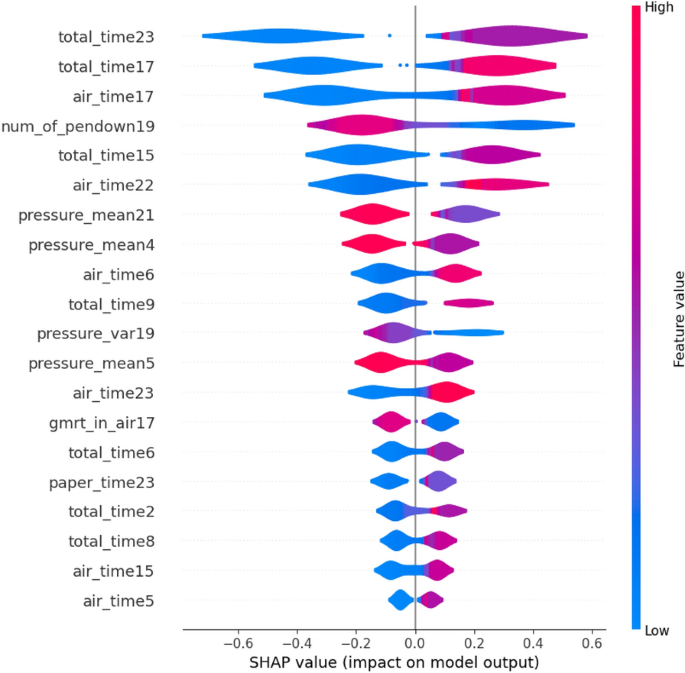

SHAP Violin Plot explanation (modified from [97])

The study by Xaioqing et al. [101] involves ML models that include Random Seeds and Nested Cross-validation, SVM-SMOTE, and RF for a three-way classification. The study uses SHAP to identify the important features among CDRSB, MMSE, EcogSPTotal, and RAVLT_perc_forgetting and distribute them according to the class. The study shows how SHAP provides a colored visual explanation for a single instance in AD class as a cumulative effect of cognitive score features based on its contribution to the class. SHAP takes explanations for each case of the test set, rotates them 90 degrees, and stacks them horizontally to visualise the test set explanations. The study proves beneficial to physicians in providing insight into why the model makes decisions. Another study by Ahmed et al. [102] uses DT, LGB, LR, RF, and SVM for 4-way classification. The authors used SHAP to derive the rankings of informative predictors in descending order. The study utilised SHAP and proxy PCA to measure predictors, which produced uncorrelated variables and a stable ranking for most classifiers. Louise et al. [103] also use the ML classifiers XGBoost, RF, SVM, DT, and LR for a four-way classification and summary plots from SHAP were used to visualise and interpret the ML models and also show biologically plausible results. Also, SHAP force plots were used to investigate individual predictions of interesting subjects. The study shows a moderate to significant correlation between the importance of natural and permutation features in SHAP value comparisons. Another study by Gaur et al. [109] uses the ML models LR, SVM, KNN, Multilayer Perceptron, and DT for a two-way classification along with LIME and SHAP explainers. The authors were able to order features in order of importance with the help of a proposed HCI model that aims to increase trust in ML models.

In this RQ, we show that LIME and SHAP are instrumental in interpreting machine learning models across different data types. Regarding numeric data, LIME proves good at local interpretability because it can change instances and fit interpretable models, showing that it is flexible across black-box models. However, its sensitivity to perturbation methods and reliance on local approximations limit its global generalization. On the other hand, SHAP gives a single measure of how important a feature is based on cooperative game theory for numeric data. This makes the data easier to understand globally and gives a full picture of how the model acts. However, challenges arise regarding computational complexity, especially for large datasets and complex models, and interpreting specific features, particularly in high-dimensional spaces. Both frameworks contribute distinct approaches tailored to numeric, text, and image data characteristics.

In all the studies for this RQ, we found LIME explainers interpreting predictions of both ML and DL models and SHAP produced a quantitative measure of features and their rankings. The RQ also helped to group the studies based on different forms of explanation for AD prediction that will be of significant use in future research.

4.4 Limitations, challenges and future prospects

This subsection addresses the RQ4: What are the limitations, challenges, and future prospects of LIME and SHAP in AD detection?

Several studies have suggested using the concepts of LIME and SHAP to better understand the predictions made by AI systems. High-performance computers, access to the LIME and SHAP open-source frameworks, and the availability of the source code have significantly contributed to the rise of HCI systems equipped with AI. Despite the encouraging outcomes shown by independent studies, it is not surprising that these initiatives have several limitations. To stimulate further research in this area, we outline below some drawbacks and knowledge gaps in AD detection using LIME and SHAP.

  1. 1.

    One of the limitations of using LIME and SHAP for AD detection is the limited sample size of available data [100]. Therefore, to obtain reliable and robust explanations, a large number of data points are required, which can be challenging for medical datasets.

  2. 2.

    Several research articles use preprocessed and readily available datasets. AD detection demands analyzing multiple types of features, such as demographic data, cognitive test scores, and brain imaging data, which can be complex and difficult to interpret and mandates the need to be validated with a professional from the medical domain [105]. LIME and SHAP may not provide sufficient information to explain the complex interactions between these features. Therefore, to enhance the benefit to all stakeholders, it is necessary to include medical and AI experts to deduce the interpretability obtained by the XAI framework. We have not found any such studies in this review that have considered this aspect.

  3. 3.

    Researchers in XAI frequently rely on their intuition to ascertain a sound explanation without prior consultation with a medical expert [94]. When an intuition is detected that is inconsistent with how it is being understood, a confusion scenario results, raising doubts about how interpretability originated. The only way to avoid this is to have access to ground truth data so that one may objectively validate the explanation against it without questioning the XAI systems’ judgments.

  4. 4.

    Multiple XAI frameworks have been employed in some research to enhance explainability. While this may sound good from an academic point of view, it sometimes leads to ambiguity. One study combined the use of the LIME and SHAP frameworks [109]. However, there was no correlation between the feature rankings produced by these frameworks. Another study that tested the interpretability of SHAP combined it with other techniques [103]. Again, a bad association between feature ranks of the SHAP values and other models was discovered. The explanations provided by multiple XAI models may cause ambiguity, which can undermine the confidence and trust of clinicians in AI decisions as a whole, not just in the interpretations of XAI.

  5. 5.

    Even though researchers used XAI frameworks to predict AD, there is always a tradeoff between the interpretability of a model and accuracy. While LIME and SHAP can improve the interpretability of a model, they may reduce the accuracy, particularly of complex models [91]. Therefore, it is important to balance interpretability and accuracy when using these techniques.

Several studies have offered to explain AD prediction and subsequent interpretation using the LIME and SHAP frameworks. While the reviewed articles demonstrated significant progress in achieving clinical accuracy, the raised RQs, along with acknowledged limitations and challenges, underscore the need for more targeted research endeavors. This is pivotal for driving substantial improvements in XAI-based AD systems in real-world medical scenarios. For instance, envision a hospital setting where clinicians rely on an XAI-based AD classification model to interpret and validate a complex data sample of an individual. In this scenario, the XAI framework should provide clear and understandable explanations for why the model arrived at specific predictions, guiding clinicians in making informed decisions about patient care. This kind of contribution is yet to be carried out due to the non-availability of large datasets and XAI ground truth data. On the other hand, AI researchers must thoroughly study the issues discussed in RQs, keeping medical professionals in the loop to provide the medical community with profound reliability and trustworthiness for AI-driven AD diagnosis.

5 Conclusion

A carefully selected set of research questions guided this systematic review of 23 articles that utilised LIME and SHAP for AD classification. It gave us a comprehensive understanding of these XAI frameworks’ advantages, obstacles, and prospects for AD detection and classification. Our findings not only highlight the potential of these frameworks to enhance the interpretability of AI models for AD detection and classification but also underscore the need for ongoing research and development to address the challenges and limitations of these methods. Our review will inspire further research in this critical area and help advance our understanding of how XAI frameworks can be leveraged to improve the diagnosis and treatment of AD.

Availability of data and materials

The data used in code walkthrough can be obtained by contacting any of the authors.


  1. Fontana R, Agostini M, Murana E, Mahmud M, Scremin E, Rubega M, Sparacino G, Vassanelli S, Fasolato C (2017) Early hippocampal hyperexcitability in PS2APP mice: role of mutant PS2 and APP. Neurobiol Aging 50:64–76

    Article  Google Scholar

  2. Rizzi L, Rosset I, Roriz-Cruz M (2014) Global epidemiology of dementia: Alzheimer’s and vascular types. Biomed Res Int 2014:1

    Article  Google Scholar

  3. Leparulo A, Mahmud M, Scremin E, Pozzan T, Vassanelli S, Fasolato C (2019) Dampened slow oscillation connectivity anticipates amyloid deposition in the PS2APP mouse model of Alzheimer’s disease. Cells 9(1):54

    Article  Google Scholar

  4. Gauthier S, Webster C, Sarvaes S, Morais J, Rosa-Neto P (2022) World Alzheimer report 2022: life after diagnosis-navigating treatment, care and support

  5. Shaffi N, Vimbi V, Mahmud M, Subramanian K, Hajamohideen F (2023) Bagging the best: a hybrid SVM-KNN ensemble for accurate and early detection of Alzheimer’s and Parkinson’s diseases. In: International conference on brain informatics. Springer, London, pp 443–455

  6. Hajamohideen F, Shaffi N, Mahmud M, Subramanian K, Al Sariri A, Vimbi V, Abdesselam A (2023) Four-way classification of Alzheimer’s disease using deep Siamese convolutional neural network with triplet-loss function. Brain Inform 10(1):1–13

    Article  Google Scholar

  7. Shaffi N, Hajamohideen F, Abdesselam A, Mahmud M, Subramanian K (2022) Ensemble classifiers for a 4-way classification of Alzheimer’s disease. In: Proceedings of the AII, pp 219–230

  8. Yahaya SW, Lotfi A, Mahmud M (2020) Towards the development of an adaptive system for detecting anomaly in human activities. In: Proceedings of the SSCI, pp 534–541

  9. Yahaya SW, Lotfi A, Mahmud M (2021) Towards a data-driven adaptive anomaly detection system for human activity. Pattern Recognit Lett 145:200–207

    Article  Google Scholar

  10. Lalotra GS, Kumar V, Bhatt A, Chen T, Mahmud M (2022) Iretads: an intelligent real-time anomaly detection system for cloud communications using temporal data summarization and neural network. Secur Commun Netw 2022:1–15 (Article ID: 9149164)

    Article  Google Scholar

  11. Fabietti M et al (2020) Adaptation of convolutional neural networks for multi-channel artifact detection in chronically recorded local field potentials. In: Proceedings of the SSCI, pp 1607–1613

  12. Fabietti M et al (2020) Neural network-based artifact detection in local field potentials recorded from chronically implanted neural probes. In: Proceedings of the IJCNN, pp 1–8

  13. Fabietti M et al (2020) Artifact detection in chronically recorded local field potentials using long-short term memory neural network. In: Proceedings of the AICT, pp 1–6

  14. Fabietti M, Mahmud M, Lotfi A (2022) Artefact detection in chronically recorded local field potentials: an explainable machine learning-based approach. In: Proceedings of the IJCNN, pp 1–7

  15. Fabietti M, Mahmud M, Lotfi A (2020) Machine learning in analysing invasively recorded neuronal signals: available open access data sources. In: Proceedings of the brain information, pp 151–162

  16. Rahman S, Sharma T, Mahmud M (2020) Improving alcoholism diagnosis: comparing instance-based classifiers against neural networks for classifying EEG signal. In: Proceedings of the brain information, pp 239–250

  17. Tahura S, Hasnat Samiul S, Shamim Kaiser M, Mahmud M (2021) Anomaly detection in electroencephalography signal using deep learning model. In: Proceedings of the TCCE, pp 205–217

  18. Wadhera T, Mahmud M (2022) Computing hierarchical complexity of the brain from electroencephalogram signals: a graph convolutional network-based approach. In: Proceedings of the IJCNN, pp 1–6

  19. Fabietti MI et al (2022) Detection of healthy and unhealthy brain states from local field potentials using machine learning. In: Proceedings of the brain information, pp 27–39

  20. Dhara T, Singh PK, Mahmud M (2023) A fuzzy ensemble-based deep learning model for EEG-based emotion recognition. Cogn Comput 2023:1–15

    Google Scholar

  21. Shahriar MF, Arnab MSA, Khan MS, Rahman SS, Mahmud M, Kaiser MS (2023) Towards machine learning-based emotion recognition from multimodal data. In: Frontiers of ICT in healthcare: proceedings of EAIT, vol 2022, pp 99–109

  22. Zawad MRS, Rony CSA, Haque MY, Banna MHA, Mahmud M, Kaiser MS (2023) A hybrid approach for stress prediction from heart rate variability. In: Frontiers of ICT in healthcare: proceedings of EAIT 2022, pp 111–121

  23. Bhagat D, Ray A, Sarda A, Dutta Roy N, Mahmud M, De D (2023) Improving mental health through multimodal emotion detection from speech and text data using long-short term memory. In: Frontiers of ICT in healthcare: proceedings of EAIT 2022, pp 13–23

  24. Sumi AI et al (2018) Fassert: a fuzzy assistive system for children with autism using internet of things. In: Proceedings of the brain information, pp 403–412

  25. Al Banna M et al (2020) A monitoring system for patients of autism spectrum disorder using artificial intelligence. In: Proceedings of the brain information, pp 251–262

  26. Akter T et al (2021) Towards autism subtype detection through identification of discriminatory factors using machine learning. In: Proceedings of the brain information, pp 401–410

  27. Biswas M, Kaiser MS, Mahmud M, Al Mamun S, Hossain M, Rahman MA et al An XAI based autism detection: the context behind the detection. In: Proceedings of the brain information, pp 448–459 (2021)

  28. Ghosh T et al (2021) Artificial intelligence and internet of things in screening and management of autism spectrum disorder. Sustain Cities Soc 74:103189

    Article  Google Scholar

  29. Ahmed, S., et al Toward machine learning-based psychological assessment of autism spectrum disorders in school and community. In: Proceedings of the TEHI, pp 139–149 (2022)

  30. Mahmud M et al (2022) Towards explainable and privacy-preserving artificial intelligence for personalisation in autism spectrum disorder. In: Proceedings of the HCII, pp 356–370

  31. Wadhera T, Mahmud M (2022) Influences of social learning in individual perception and decision making in people with autism: a computational approach. In: Proceedings of the brain information, pp 50–61

  32. Wadhera T, Mahmud M (2023) Computational model of functional connectivity distance predicts neural alterations. IEEE Trans Cogn Develop Syst 2023:1–10

    Google Scholar

  33. Akhund NU et al (2018) Adeptness: AlzheimerÕs disease patient management system using pervasive sensors-early prototype and preliminary results. In: Proceedings of the brain information, pp 413–422

  34. Jesmin S, Kaiser MS, Mahmud M (2020) Towards artificial intelligence driven stress monitoring for mental wellbeing tracking during COVID-19. In: Proceedings of the WI-IAT, pp 845–851

  35. Al Mamun S, Kaiser MS, Mahmud M (2021) An artificial intelligence based approach towards inclusive healthcare provisioning in society 5.0: a perspective on brain disorder. In: Proceedings of the brain information, pp 157–169

  36. Biswas M, Rahman A, Kaiser MS, Al Mamun S, Ebne Mizan KS, Islam MS, Mahmud M (2021) Indoor navigation support system for patients with neurodegenerative diseases. In: Proceedings of the brain information, pp 411–422

  37. Shaffi N, Hajamohideen F, Mahmud M, Abdesselam A, Subramanian K, Sariri AA (2022) Triplet-loss based Siamese convolutional neural network for 4-way classification of Alzheimer’s disease. In: Proceedings of the brain information, pp 277–287

  38. Haque Y, Zawad RS, Rony CSA, Banna HA, Ghosh T, Kaiser MS, Mahmud M (2024) State-of-the-art of stress prediction from heart rate variability using artificial intelligence. Cogn Comput 16(2):455–481

    Article  Google Scholar

  39. Javed AR, Saadia A, Mughal H, Gadekallu TR, Rizwan M, Maddikunta PKR, Mahmud M, Liyanage M, Hussain A (2023) Artificial intelligence for cognitive health assessment: state-of-the-art, open challenges and future directions. Cogn Comput 15:1767–1812

    Article  Google Scholar

  40. Jesmin S, Kaiser MS, Mahmud M (2020) Artificial and internet of healthcare things based Alzheimer care during COVID-19. In: Proceedings of the brain information, pp 263–274

  41. Satu MS et al (2021) Short-term prediction of COVID-19 cases using machine learning models. Appl Sci 11(9):4266

    Article  Google Scholar

  42. Bhapkar HR, Mahalle PN, Shinde GR, Mahmud M (2021) Rough sets in COVID-19 to predict symptomatic cases. In: COVID-19: prediction, decision-making, and its impacts, pp 57–68

  43. Kumar S, Viral R, Deep V, Sharma P, Kumar M, Mahmud M, Stephan T (2021) Forecasting major impacts of COVID-19 pandemic on country-driven sectors: challenges, lessons, and future roadmap. Pers Ubiquitous Comput 2021:1–24

    Google Scholar

  44. Mahmud M, Kaiser MS (2021) Machine learning in fighting pandemics: a COVID-19 case study. In: COVID-19: prediction, decision-making, and its impacts, pp 77–81

  45. Prakash N, Murugappan M, Hemalakshmi G, Jayalakshmi M, Mahmud M (2021) Deep transfer learning for COVID-19 detection and infection localization with superpixel based segmentation. Sustain Cities Soc 75:103252

    Article  Google Scholar

  46. Paul A, Basu A, Mahmud M, Kaiser MS, Sarkar R (2022) Inverted bell-curve-based ensemble of deep learning models for detection of COVID-19 from chest X-rays. Neural Comput Appl 2022:1–15

    Google Scholar

  47. Banna MHA, Ghosh T, Nahian MJA, Kaiser MS, Mahmud M, Taher KA, Hossain MS, Andersson K (2023) A hybrid deep learning model to predict the impact of COVID-19 on mental health from social media big data. IEEE Access 11:77009–77022

    Article  Google Scholar

  48. Nahiduzzaman M, Tasnim M, Newaz NT, Kaiser MS, Mahmud M (2020) Machine learning based early fall detection for elderly people with neurological disorder using multimodal data fusion. In: Proceedings of the brain information, pp 204–214

  49. Farhin F, Kaiser MS, Mahmud M (2020) Towards secured service provisioning for the internet of healthcare things. In: Proceedings of the AICT, pp 1–6

  50. Farhin F, Sultana I, Islam N, Kaiser MS, Rahman MS, Mahmud M (2020) Attack detection in internet of things using software defined network and fuzzy neural network. In: Proceedings of the ICIEV and icIVPR, pp 1–6

  51. Ahmed S et al (2021) Artificial intelligence and machine learning for ensuring security in smart cities. In: Data-driven mining, learning and analytics for secured smart cities, pp 23–47

  52. Islam N et al (2021) Towards machine learning based intrusion detection in IoT networks. Comput Mater Contin 69(2):1801–1821

    Google Scholar

  53. Esha NH et al (2021) Trust IoHT: a trust management model for internet of healthcare things. In: Proceedings of the ICDSA, pp 47–57

  54. Zaman S et al (2021) Security threats and artificial intelligence based countermeasures for internet of things networks: a comprehensive survey. IEEE Access 9:94668–94690

    Article  Google Scholar

  55. Singh R, Mahmud M, Yovera L (2021) Classification of first trimester ultrasound images using deep convolutional neural network. In: Proceedings of the AII, pp 92–105

  56. Zohora MF, Tania MH, Kaiser MS, Mahmud M (2020) Forecasting the risk of type ii diabetes using reinforcement learning. In: Proceedings of the ICIEV and icIVPR, pp 1–6

  57. Mukherjee H et al (2021) Automatic lung health screening using respiratory sounds. J Med Syst 45(2):1–9

    Article  Google Scholar

  58. Deepa B, Murugappan M, Sumithra M, Mahmud M, Al-Rakhami MS (2021) Pattern descriptors orientation and map firefly algorithm based brain pathology classification using hybridized machine learning algorithm. IEEE Access 10:3848–3863

    Article  Google Scholar

  59. Mammoottil MJ et al (2022) Detection of breast cancer from five-view thermal images using convolutional neural networks. J Healthc Eng 2022:1

    Article  Google Scholar

  60. Chen T et al (2022) A dominant set-informed interpretable fuzzy system for automated diagnosis of dementia. Front Neurosci 16:86766

    Google Scholar

  61. Kumar I et al (2022) Dense tissue pattern characterization using deep neural network. Cogn Comput 14(5):1728–1751

    Article  Google Scholar

  62. Mukherjee P et al (2021) Icondet: an intelligent portable healthcare app for the detection of conjunctivitis. In: Proceedings of the AII, pp 29–42

  63. Rai T, Shen Y, Kaur J, He J, Mahmud M, Brown DJ, Baldwin DR, O’Dowd E, Hubbard R (2023) Decision tree approaches to select high risk patients for lung cancer screening based on the UK primary care data. In: International conference on artificial intelligence in medicine, pp 35–39

  64. Farhin F, Kaiser MS, Mahmud M (2021) Secured smart healthcare system: blockchain and Bayesian inference based approach. In: Proceedings of the TCCE, pp 455–465

  65. Kaiser MS et al (2021) 6G access network for intelligent internet of healthcare things: opportunity, challenges, and research directions. In: Proceedings of the TCCE, pp 317–328

  66. Biswas M et al (2021) ACCU\(^{3}\)RATE: a mobile health application rating scale based on user reviews. PLoS ONE 16(12):0258050

  67. Adiba FI, Islam T, Kaiser MS, Mahmud M, Rahman MA (2020) Effect of corpora on classification of fake news using Naive Bayes classifier. Int J Autom Artif Intell Mach Learn 1(1):80–92

    Google Scholar

  68. Rabby G et al (2018) A flexible keyphrase extraction technique for academic literature. Proc Comput Sci 135:553–563

    Article  Google Scholar

  69. Ghosh T et al (2021) An attention-based mood controlling framework for social media users. In: Proceedings of the brain information, pp 245–256

  70. Rahman MA et al (2022) Explainable multimodal machine learning for engagement analysis by continuous performance test. In: Proceedings of the HCII, pp 386–399

  71. Ahuja NJ et al (2021) An investigative study on the effects of pedagogical agents on intrinsic, extraneous and germane cognitive load: experimental findings with dyscalculia and non-dyscalculia learners. IEEE Access 10:3904–3922

    Article  Google Scholar

  72. Ruiz J, Mahmud M, Modasshir M, Shamim Kaiser M, (2020) Alzheimer’s Disease neuroimaging initiative, f.t.: 3D densenet ensemble in 4-way classification of Alzheimer’s disease. In: Brain informatics: 13th international conference, BI 2020, Padua, Italy, September 19, 2020, proceedings 13, pp 85–96

  73. Jahan S, Abu Taher K, Kaiser MS, Mahmud M, Rahman MS, Hosen AS, Ra I-H (2023) Explainable AI-based Alzheimer’s prediction and management using multimodal data. PLoS ONE 18(11):0294253

    Article  Google Scholar

  74. Jahan S, Saif Adib MR, Mahmud M, Kaiser MS (2023) Comparison between explainable AI algorithms for Alzheimer’s disease prediction using efficientnet models. In: International conference on brain informatics, pp 357–368

  75. Shaffi N, Viswan V, Mahmud M, Hajamohideen F, Subramanian K (2023) Towards automated classification of Parkinson’s disease: comparison of machine learning methods using MRI and acoustic data. In: 2023 IEEE symposium series on computational intelligence (SSCI), pp 1328–1333

  76. Viswan V, Shaffi N, Mahmud M, Subramanian K, Hajamohideen F (2023) A comparative study of pretrained deep neural networks for classifying Alzheimer’s and Parkinson’s disease. In: 2023 IEEE symposium series on computational intelligence (SSCI), pp 1334–1339

  77. Shaffi N, Viswan V, Mahmud M, Hajamohideen F, Subramanian K (2023) Multi-planar MRI-based classification of Alzheimer’s disease using tree-based machine learning algorithms. In: Proceedings of the WI-IAT, pp 496–502

  78. Fabietti M, Mahmud M, Lotfi A, Leparulo A, Fontana R, Vassanelli S, Fasolato C (2023) Early detection of Alzheimer’s disease from cortical and hippocampal local field potentials using an ensembled machine learning model. IEEE Trans Neural Syst Rehabil Eng 31:2839–2848

    Article  Google Scholar

  79. Vimbi V, Shaffi N, Mahmud M, Subramanian K, Hajamohideen F (2024) Explainable artificial intelligence in Alzheimer’s disease classification: a systematic review. Cogn Comput 16(1):1–44

    Article  Google Scholar

  80. Nagarajan D, Kavikumar J, Tom M, Mahmud M, Broumi S (2023) Modelling the progression of Alzheimer’s disease using neutrosophic hidden Markov models. Neutrosophic Sets Syst 56(1):4

    Google Scholar

  81. Hassija V, Chamola V, Mahapatra A, Singal A, Goel D, Huang K, Scardapane S, Spinelli I, Mahmud M, Hussain A (2024) Interpreting black-box models: a review on explainable artificial intelligence. Cogn Comput 16(1):45–74

    Article  Google Scholar

  82. Tasnim N, Al Mamun S, Shahidul Islam M, Kaiser MS, Mahmud M (2023) Explainable mortality prediction model for congestive heart failure with nature-based feature selection method. Appl Sci 13(10):6138

    Article  Google Scholar

  83. Vimbi V, Shaffi N, Mahmud M, Subramanian K, Hamajohideen F (2023) Explainable artificial intelligence in Alzheimer’s disease classification: a systematic review. Cogn Comput 2023:1

    Google Scholar

  84. Kitchenham B, Charters S (2007) Guidelines for performing systematic literature reviews in software engineering. Technical report EBSE 2007-001, Keele University and Durham University Joint Report.

  85. Page MJ, McKenzie JE, Bossuyt PM, Boutron I, Hoffmann TC, Mulrow CD, Shamseer L, Tetzlaff JM, Akl EA, Brennan SE et al (2021) The Prisma 2020 statement: an updated guideline for reporting systematic reviews. Syst Rev 10(1):1–11

    Article  Google Scholar

  86. Ribeiro MT, Singh S, Guestrin C (2016) “Why should i trust you?” Explaining the predictions of any classifier. In: Proceedings of the 22nd ACM SIGKDD international conference on knowledge discovery and data mining, pp 1135–1144

  87. Lundberg SM, Lee S-I (2017) A unified approach to interpreting model predictions. Adv Neural Inf Process Systems 30:1

    Google Scholar

  88. Davenport T, Kalakota R (2019) The potential for artificial intelligence in healthcare. Fut Healthc J 6(2):94

    Article  Google Scholar

  89. Kamal MS, Northcote A, Chowdhury L, Dey N, Crespo RG, Herrera-Viedma E (2021) Alzheimer’s patient analysis using image and gene expression data and explainable—AI to present associated genes. IEEE Trans Instrum Meas 70:1–7

    Article  Google Scholar

  90. Shad HA, Rahman QA, Asad NB, Bakshi AZ, Mursalin SF, Reza MT, Parvez MZ (2021) Exploring Alzheimer’s disease prediction with XAI in various neural network models. In: TENCON 2021–2021 IEEE region 10 conference (TENCON). IEEE, pp 720–725

  91. Sidulova M, Nehme N, Park CH (2021) Towards explainable image analysis for Alzheimer’s disease and mild cognitive impairment diagnosis. In: 2021 IEEE applied imagery pattern recognition workshop (AIPR). IEEE, pp 1–6

  92. Ilias L, Askounis D (2022) Explainable identification of dementia from transcripts using transformer networks. IEEE J Biomed Health Inform 26(8):4153–4164

    Article  Google Scholar

  93. Duamwan LM, Bird JJ (2023) Explainable AI for medical image processing: a study on MRI in Alzheimer’s disease. In: Proceedings of the 16th international conference on pervasive technologies related to assistive environments, pp 480–484

  94. El-Sappagh S, Alonso JM, Islam SMR, Sultan AM, Kwak KS (2021) A multilayer multimodal detection and prediction model based on explainable artificial intelligence for Alzheimer’s disease. Sci Rep 11(1):2660

    Article  Google Scholar

  95. Bloch L, Friedrich CM (2021) Data analysis with Shapley values for automatic subject selection in Alzheimer’s disease data sets using interpretable machine learning. Alzheimer’s Res Ther 13(1):1–30

    Google Scholar

  96. Lombardi A, Diacono D, Amoroso N, Biecek P, Monaco A, Bellantuono L, Pantaleo E, Logroscino G, De Blasi R, Tangaro S et al (2022) A robust framework to investigate the reliability and stability of explainable artificial intelligence markers of mild cognitive impairment and Alzheimer’s disease. Brain Inform 9(1):1–17

    Article  Google Scholar

  97. Hernandez M, Ramon-Julvez U, Ferraz F (2022) With the ADNI consortium: explainable AI toward understanding the performance of the top three tadpole challenge methods in the forecast of Alzheimer’s disease diagnosis. PLoS ONE 17(5):0264695

    Article  Google Scholar

  98. Lai Y, Lin X, Lin C, Lin X, Chen Z, Zhang L (2022) Identification of endoplasmic reticulum stress-associated genes and subtypes for prediction of Alzheimer’s disease based on interpretable machine learning. Front Pharmacol 13:1

    Article  Google Scholar

  99. Bogdanovic B, Eftimov T, Simjanoska M (2022) In-depth insights into Alzheimer’s disease by using explainable machine learning approach. Sci Rep 12(1):1–26

    Article  Google Scholar

  100. Chun MY, Park CJ, Kim J, Jeong JH, Jang H, Kim K, Seo SW (2022) Prediction of conversion to dementia using interpretable machine learning in patients with amnestic mild cognitive impairment. Front Aging Neurosci 14:1

    Article  Google Scholar

  101. Xu X, Yan X (2022) A convenient and reliable multi-class classification model based on explainable artificial intelligence for Alzheimer’s disease. In: 2022 IEEE international conference on advances in electrical engineering and computer applications (AEECA). IEEE, pp 671–675

  102. Salih A, Galazzo IB, Cruciani F, Brusini L, Radeva P (2022) Investigating explainable artificial intelligence for MRI-based classification of dementia: a new stability criterion for explainable methods. In: 2022 IEEE international conference on image processing (ICIP). IEEE, pp 4003–4007

  103. Bloch L, Friedrich CM (2022) Machine learning workflow to explain black-box models for early Alzheimer’s disease classification evaluated for multiple datasets. Preprint arXiv:2205.05907

  104. Danso SO, Zeng Z, Muniz-Terrera G, Ritchie CW (2021) Developing an explainable machine learning-based personalised dementia risk prediction model: a transfer learning approach with ensemble learning algorithms. Front Big Data 4:21

    Article  Google Scholar

  105. Hammond TC, Xing X, Wang C, Ma D, Nho K, Crane PK, Elahi F, Ziegler DA, Liang G, Cheng Q et al (2020) \(\beta\)-amyloid and tau drive early Alzheimer’s disease decline while glucose hypometabolism drives late decline. Commun Biol 3(1):1–13

    Article  Google Scholar

  106. Yilmaz D (2023) Development and evaluation of an explainable diagnostic AI for Alzheimer’s disease. In: 2023 international conference on artificial intelligence science and applications in industry and society (CAISAIS). IEEE, pp 1–6

  107. Rahim N, El-Sappagh S, Ali S, Muhammad K, Del Ser J, Abuhmed T (2023) Prediction of Alzheimer’s progression based on multimodal deep-learning-based fusion and visual explainability of time-series data. Inf Fus 92:363–388

    Article  Google Scholar

  108. Yi F, Yang H, Chen D, Qin Y, Han H, Cui J, Bai W, Ma Y, Zhang R, Yu H (2023) XGBoost-SHAP-based interpretable diagnostic framework for Alzheimer’s disease. BMC Med Inform Decis Mak 23(1):137

    Article  Google Scholar

  109. Loveleen G, Mohan B, Shikhar BS, Nz J, Shorfuzzaman M, Masud M (2022) Explanation-driven HCI model to examine the mini-mental state for Alzheimer’s disease. ACM Trans Multimed Comput Commun Appl (TOMM) 2022:1

    Google Scholar

  110. Rashmi U, Singh T, Ambesange S (2023) MRI image-based ensemble voting classifier for Alzheimer’s disease classification with explainable AI technique, pp 1–6.

  111. Loveleen G, Mohan B, Shikhar BS, Nz J, Shorfuzzaman M, Masud M (2023) Explanation-driven HCI model to examine the mini-mental state for Alzheimer’s disease. ACM Trans Multimed Comput Commun Appl 20(2):1–16

    Article  Google Scholar

Download references


The authors would like to extend gratitude to those scientists who approved presenting their results in this review.


This work is supported by UKRI through the Horizon Europe Guarantee Scheme (project number: 10078953) for the European Commission funded PHASE IV AI project (Grant Agreement No. 101095384) under the Horizon Europe Programme, and by the Ministry of Higher Education, Research and Innovation (MoHERI) of the Sultanate of Oman under the Block Funding Program (Grant Agreement No. MoHERI/BFP/UoTAS/01/2021). Vimbi Viswan is supported with an Internal Research Grant from the University of Technology and Applied Sciences, Sultanage of Oman (Grant Agreement No. UTAS-Suhar/IRG/Call-7/8/2024).

Author information

Authors and Affiliations



All authors have contributed to, seen and approved the paper.

Corresponding author

Correspondence to Mufti Mahmud.

Ethics declarations

Ethics approval and consent to participate

This work is based on secondary datasets available online. Hence ethical approval was not necessary.

Consent for publication

All authors have seen and approved the current version of the paper.

Competing interests

Mufti Mahmud is an editorial board member of the Brain Informatics journal and was not involved in the editorial review or the decision to publish this article. All authors declare that there are no other competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Viswan Vimbi and Noushath Shaffi are joint first authors.


Appendix: Code walkthroughs

This section provides code walkthroughs for implementing the LIME and SHAP frameworks. The code shown in Listing 1 implements the LIME framework that provides local explanations for AD classification using MRI scans for a CNN model. The code in Listing-2 demonstrates implementation of the SHAP framework for enhanced interpretability for an XGBoost model that predicts AD using tabular data.

Code walkthrough: LIME XAI framework

figure c
figure d

Lines 1–15 represent the required dependency packages. Line 16 defines a function that groups train and test data from an h5 file which is invoked in Line 17. The h5 file stores MRI image data and labels for training and testing as a numpy array. Lines 18–21 code snippet prepares data for deep learning. The x_train and x_test data are converted to a 3D format suitable for pretrained deep learning models. The y_train and y_test data containing categorical labels is converted to one-hot encoded vectors.

Lines 22–39 define a CNN model named model for image classification using the InceptionV3 pretrained architecture. The pretrained InceptionV3 model is loaded with weights from ImageNet and configured to exclude the top classification layer (Line-23). The layers of the pretrained model are frozen to retain their learned features during training (Line-24). The model is then extended with additional layers, including dropout for regularisation, batch normalisation for stable training, and dense layers for classification (Lines 25–37). The last layer has four units with softmax activation for multi-class classification (Line-37). The model summary shows the architecture and the number of parameters (Line 38). Finally, the weights of the model are loaded from a file named best-weights.hdf5 (Line-39).

The code in Lines 40–46 retrieves an MRI image from the x_train array, reduces its dimensions to eliminate singleton dimensions using np.squeeze and then displays the grayscale image using matplotlib commands. After displaying the image, it is saved as a JPEG file named ‘output.jpg’ using the plt.imsave function, with the ‘grey’ colourmap specified to ensure the grayscale format is preserved in the saved image.

The code in Lines 47–57 reads the previously saved JPEG image output.jpg using the PIL library’s function, resizes it to the required dimensions and converts it to a numpy array. The array is then preprocessed, expanding its dimensions and making it suitable for input to a model. The deep learning model, denoted as model, predicts the class probabilities for the image (Line 52), and the predicted label is obtained by finding the index with the highest probability (Line 54). The true label of the image from the y_train array is printed for comparison (Line 57).

Fig. 13
figure 13

LIME-Output of code Walkthrough

In the code snippet from lines 60–66, a LimeImageExplainer is employed to interpret the model’s prediction for a preprocessed MRI image. The LimeImageExplainer generates an explanation for the top 4 labels, creating a visualisation with a mask overlay on the original image to highlight influential regions (see Fig. 13). The displayed image, along with the true, predicted, and explanation labels, facilitates a comprehensive understanding of the model’s decision-making process. By showcasing the areas that contributed to the prediction, this explanation aids in interpreting and validating the model’s behaviour in the context of the given MRI data.

Code walkthrough: SHAP XAI framework

figure e

Lines 1–5 represents essential libraries for numerical operations, data manipulation, and visualisation. The subsequent steps involve preparing a dataset, initialising an XGBoost model, and integrating the SHAP library to gain insights into feature importance.

Line 6 in the code initiates the SHAP library for JavaScript components required for SHAP visualisations. Additionally, Line 7 sets a specific seed value (12345) to control the randomness in the subsequent processes, ensuring reproducible results across multiple runs.

The code in Lines 8–11 is used as an example to introduce the SHAP library and its functionalities, demonstrating the loading of a dataset and providing a visual representation of its contents. Line-8 imports data from a CSV file into a pandas dataframe. The dataset includes handwriting data from 174 participants. The classification task consists in distinguishing AD patients from healthy people. The features (X) related to handwriting analysis attributes and a target variable (y) indicating whether a person is healthy or AD. Line 9–10 prepare the data by separating features and the target variable, making it suitable for training a machine learning model.

Fig. 14
figure 14

SHAP-Output of code Walkthrough (Force Plot)

The train_test_split function from the scikit-learn library in Line-11 facilitates the process of partitioning the dataset into two disjoint subsets. The training set (X_train, y_train) is used to train the model, while the validation set (X_valid, y_valid) serves as an independent dataset for evaluating the model’s performance. The test_size parameter specifies the proportion of the data to allocate to the validation set, and the random_state parameter ensures reproducibility by fixing the random seed for the split.

The code segment in Lines 12–16 encapsulates the initial steps of configuring an XGBoost model, preparing data, and establishing hyperparameters for training. Lines 12–13 are used for data preparation using the DMatrix objects, which are specific data structures used by XGBoost. ‘dtrain’ and ‘dvalid’ represent the training and validation data objects respectively. Line-14 provides an initial prediction score for all instances and Line-15 sets up the hyperparameters for training. Line-16 creates a ‘watchlist’ to monitor the performance of the XGBoost model while training. This is a diagnostic tool consisting of a list of tuples, where each tuple is DMatrix object with a corresponding label.

Line 17 involves the actual training of the model and evaluating its performance on the validation set. The params argument includes various hyperparameters that control the learning process as initialised in Line 15, dtrain is the training dataset provided as a DMatrix object, num_boost_round=5000 specifies the maximum number of iterations during training, evals=watchlist indicates the dataset (watchlist) on which the model’s performance will be evaluated during training, early_stopping_rounds=20 enables early stopping, where training will stop if the performance on the validation dataset does not improve after 20 consecutive rounds, and verbose_eval=100 specifies that the training progress will be printed to the console every 100 iterations. The model object will contain the trained XGBoost model after the completion of this process.

The code in Lines 18–19 sets up a TreeExplainer for the XGBoost model (created in Line-17) and then calculates Shapley values for the entire dataset to find the feature contributions and their impact on the model’s predictions. The TreeExplainer function creates a SHAP object, explainer, to explain the output of the tree-based model. The statement in Line-19 creates Shapley values for the entire dataset X that represents the contribution of each feature. Shapley values provide insights into the importance and impact of each feature on the model’s predictions. Positive Shapley values indicate a positive contribution to the prediction, while negative values suggest a negative contribution. These Shapley values can be used to interpret the model’s decision either for individual instances or to analyse the overall feature importance of the dataset.

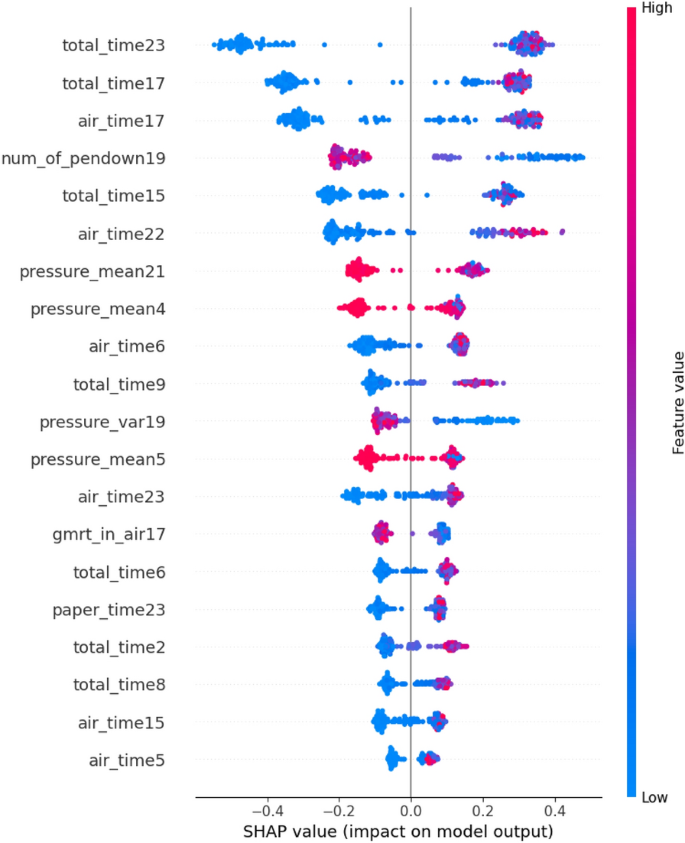

Fig. 15
figure 15

SHAP-Output of code Walkthrough (Summary Plot)

The code in Line 20 creates a force plot of the first instance using the SHAP library to give a visual representation of the XGBoost model’s prediction (see Fig. 14) and Line-21 gives a summary plot (see Fig. 15). The explainer.expected_value is the model’s expected output, and shap_values[0,:] are the Shapley values for the first instance. The X.iloc[0,:] represents the feature values of the first instance. The visual representation shows the contribution of each feature to the model’s prediction for a specific instance, aiding in the interpretability of the XGBoost model. This line can be iterated using a loop to show the force plot of any number of instances.

In this walkthrough of Explainable AI using LIME and SHAP, we explored techniques to interpret complex machine learning models. LIME, a model-agnostic approach, provided local explanations for AD classification on MRI images. SHAP, rooted in cooperative game theory, enhanced interpretability for an XGBoost model predicting AD using handwritten data. These tools, offering both local and global insights, contribute to model transparency and trust, crucial for real-world applications like healthcare and finance. As XAI advances, LIME and SHAP play pivotal roles in making AI more understandable and accountable.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Vimbi, V., Shaffi, N. & Mahmud, M. Interpreting artificial intelligence models: a systematic review on the application of LIME and SHAP in Alzheimer’s disease detection. Brain Inf. 11, 10 (2024).

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI:
